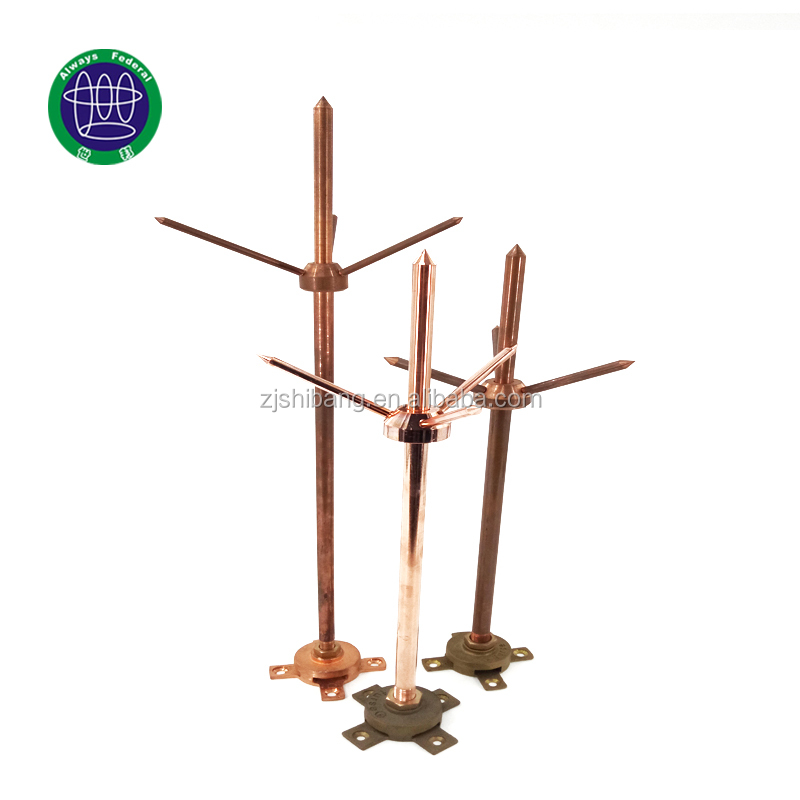

Taper Pointed Air Rod For Lightning Protection

Short Description:

Overview Essential details Place of Origin: Zhejiang, China Brand Name: SHIBANG Model Number: AF-0105 Item: Lightning Protection Material: Pure copper or copper clad steel Air rod height: <=200M protection angle: 65 degree ...


Product Detail

Product Tags

Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
SHIBANG
Model Number:
AF-0105
Item:
Lightning Protection
Material:
Pure copper or copper clad steel
Air rod height:
<=200M
protection angle:
65 degree
The hx height from ground:
2.14(h-hx)
Corrsponding protection radius:
2.14h
Current gradient:
less than 5KA
Average discharge current:
less than 7KA
Grounding resistance:
less than 10 ohm
Resistible wind speed:
over 50m/s

ItemTaper Pointed Air Rod For Lightning Protection
MaterialPure Copper or Copper Coated Stainless Steel
Length0.5M/0.75M or As Your Request
Diameter12mm; 13mm; 13.5mm; 14mm; 15mm
Corrsponding protection radius2.14h
The hx height from ground2.14(h-hx)
Current gradientless than 5KA
Average discharge currentless than 7KA
Grounding resistanceless than 10 ohm
Resistible wind speedover 50m/s

Taper Pointed Air Rod For Lightning Protection is used for protecting the buildings to avoid lightning strike. Lightning rod grounding plays an important part of the air termination network of a lightning protection system.We are professional lightning rod manufacturer.

Building Lightning Rod,alternate named lightning protection devices,used for protecting the building when raining and lightning .The lightning rod installed on the building and transfer the electric to earthing metal to protect the building . Our SLE lightning rod comply with GB standard . Customized lightning rod available



1. Winding:There is a large protection area without winding. For example, when the winding rate less

than 0.001%, (Apparently at such circumstance, the object protected has little opportunity to be winded.)

and the protection up to 55 ° angle, compared to the traditional real lightning rod, controllable discharging

lighting rod almost has no opportunity to be winded.

2. Scope of protection: When the protected object attacked by around 0.1%, (currently a point of order

under the allowable value), controllable discharging lighting rod up to 66.4 ° angle, but traditional lightning

rod is much more smaller than that. (Take the traditional lightning rod is more economical at strong

intensive thunder area, while there still has opportunity that be struck by lighting).

3. Efficiency and application prospects: Controllable lightning rod is a widely used protection device

with wide application prospects, with a high using value.







1.IQC(Incoming Check)
2. IPQC(Process Quality Control
3.First Piece Quality Control
4.Mass Products Quality Control
5.OQC(Outgoing Quality Control)
6.FQC(Final Quality Check)





XINCHANG SHIBANG NEW MATERIAL CO., LTD is one of the first-classed manufactures which integrated research and development and sales of lighting protection facility. SHIBANG is concentrating on producing lighting rods, nonmagnetic earth rod, copper clad steel ground rod, graphite ground module, chemical electrolytic ground pole, copper bonded steel tape, copper bonded stranded wire, copper busbar, all kinds of earthing clamps, exothermic welding mold and powder etc.



SHIBANG is located in Xinchang city, Zhejiang province, which is famous for tourism, north to Shanghai and east to Ningbo makes the transportation very convenient. With the complete and scientific management system, company has got approvals from worldwide clients on products quality and reputation. Welcome to vist SHIBANG, we are waiting for cooperation with your esteemed company from all over the world.





1.Providing Professional Advises & Operation
2.Customer Service Online with 24 Hours
3.Full Inspection On All The Products Before Shipement
4.Free Logo Embossing
5.Shipping &Price Term: EXW;FOB;CIF;DDU
6.OEM & ODM Are all Available







1.Professional Operation Experience
2.The Sizes All Can Be Customised
3.Sample For Your Reference Available
4.Low MOQ, Low Price
5.Safe Packing & Prompt Delivery
6.Quality Guaranted: ISO9001:2008, UL, All Kinds of Test
